Used For

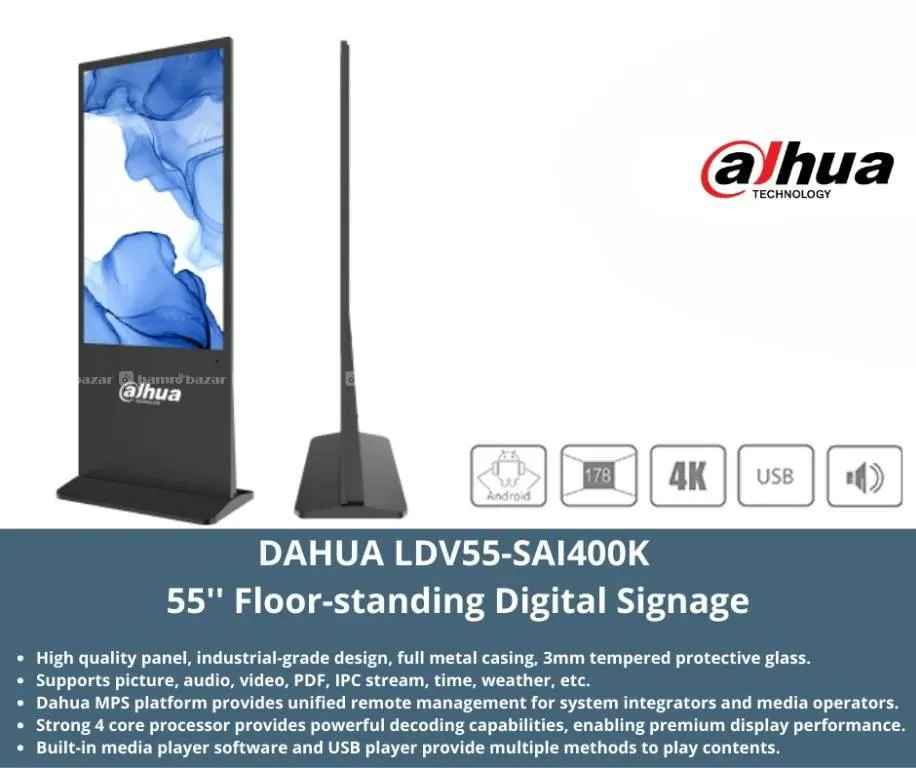

Display Model LDV55-SAI400K Backlight LED Screen Size 55'' Aspect Ratio 9:16 Resolution 2160×3840 Display Colors 1.07B (10 bits) Brightness 320nits Contrast Ratio 1200:1 Viewing Angle(H×V) 178°/178° Display Mode Portrait Response Time 8ms Connectivity Input RJ45 ×1, USB ×2, TF Slot ×1, HDMI ×1, Audio In×1 External Control RJ45(LAN), USB Wi-Fi Optional Speaker 5W×2 Smart Signage Platform Media Publish System 3.0 Touch Not Support Power & Environmental Conditions Power Supply AC100-240V, 50/60Hz Consumption =150W Consumption(Standby) Less than 0.5W Operating Temperature -0?~+40?(32?~104?) Operating Humidity 10%~85% Mechanical Specification Dimensions 1900mmx745mmx25.5mm Package 2020mmx915mmx200mm Net Weight 50kg Gross Weight 55kg Accessory Included in Box Power cord,Pedestal Optional Mount Kit NA Internal Player Processor Quad-core Cortex-A17 up to 1.6GHz Operating System Android 8.1 RAM 2GB Storage 16GB Material Type Video, audio, image, time, weather, countdown, txt, web page, stream media, pdf Video mp4,avi,mov,asf,wmv,mkv A single file can upload up to 2G, and the resolution cannot exceed 4K Audio mp3,wma,wav A single file can upload up to 500M Image jpg,jpeg,gif,bmp,png A single file can upload up to 30M, and the resolution cannot exceed 4K Documents pdf, doc, docx, ppt, pptx, xls, xlsx and txt. A single filecan can upload up to 200 MB Decoding Capacity 1CH H265 4K@60/2CH H264 4K@25/2CH H265 1080P@30&2CH H264 1080P@25/4CH H265 1080P@30/2CH H264 1080P@25. Display Model LDV55-SAI400K Backlight LED Screen Size 55'' Aspect Ratio 9:16 Resolution 2160×3840 Display Colors 1.07B (10 bits) Brightness 320nits Contrast Ratio 1200:1 Viewing Angle(H×V) 178°/178° Display Mode Portrait Response Time 8ms Connectivity Input RJ45 ×1, USB ×2, TF Slot ×1, HDMI ×1, Audio In×1 External Control RJ45(LAN), USB Wi-Fi Optional Speaker 5W×2 Smart Signage Platform Media Publish System 3.0 Touch Not Support Power & Environmental Conditions Power Supply AC100-240V, 50/60Hz Consumption =150W Consumption(Standby) Less than 0.5W Operating Temperature -0?~+40?(32?~104?) Operating Humidity 10%~85% Mechanical Specification Dimensions 1900mmx745mmx25.5mm Package 2020mmx915mmx200mm Net Weight 50kg Gross Weight 55kg Accessory Included in Box Power cord,Pedestal Optional Mount Kit NA Internal Player Processor Quad-core Cortex-A17 up to 1.6GHz Operating System Android 8.1 RAM 2GB Storage 16GB Material Type Video, audio, image, time, weather, countdown, txt, web page, stream media, pdf Video mp4,avi,mov,asf,wmv,mkv A single file can upload up to 2G, and the resolution cannot exceed 4K Audio mp3,wma,wav A single file can upload up to 500M Image jpg,jpeg,gif,bmp,png A single file can upload up to 30M, and the resolution cannot exceed 4K Documents pdf, doc, docx, ppt, pptx, xls, xlsx and txt. A single filecan can upload up to 200 MB Decoding Capacity 1CH H265 4K@60/2CH H264 4K@25/2CH H265 1080P@30&2CH H264 1080P@25/4CH H265 1080P@30/2CH H264 1080P@25
