Used For

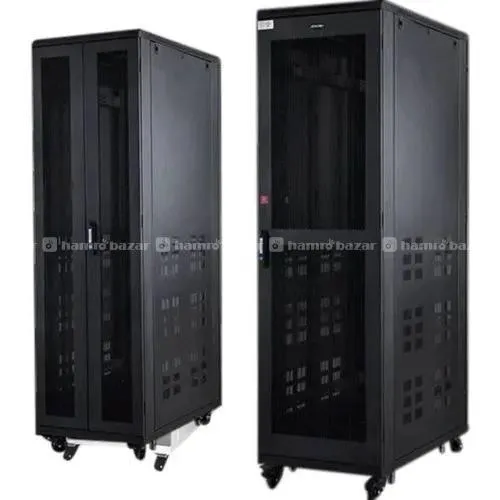

Features & Accessories Feature Conforms to DIN 41494 or Equivalent EIA /ISO/ EN/CEA Standard Adjustable mounting depth 4 No Adjustable, 19” verticals with Punched 10mm Squarer Hole and Universal 12.7 mm-15.875 mm- 15.875 mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space. Numbered U positions State-of-the art manufacturing methods provide the best product quality and fastest delivery in the industry 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments) Powder coated finish with Seven tank pretreatment process meeting ASTM standard Grounding & Bonding Options Fan module Mount Provision on top Cover Accessories Cable Basket Angle Pair Ganging Kit Fixed Shelf Cantilever Shelf Sliding Shelf Key Board Shelf Power Distribution Units Cable Oragnisers Fans and Fan Modules Rack Ground Kit Plinth Casters Levellers Rack Stabilizing Kit Note: Overall Height = Frame Height+Plinth or Caster Other models can be manufactured on request It is recommended to distribute the Load along with U space in the Rack Dimension are in MM Abbreviations H - Overall height h - Usable height W - Overall width w - Usable width D - Overall depth d - Usable depth.onstruction Welded or CKD Top & Bottom Cover Bolted to Frame with Cable entry exit cut outs Front Door Lockable Toughened Glass Door Or Lockable Perforated steel Door Rear Door Lockable Steel Door – Plain/ Vented/ Perforated 19” Mounting Angle Formed Steel Std. Equipment Mounting DIN Std. 10 mm Sq. Slots Standard Finish Powder coated Standard Colour Grey & Off white OR Black Standard Mounting Caster wheels (2 with Brake & 2 without Brake)OR Levelers Or Plinth Rack Standard Conforms to DIN 41494 or equivalent standard Static Load 750 Kgs with casters 1250 Kgs with Levelers/Plinth.OVERVIEW NRS Series, Rigid Racks for Severs, Networking, AV, Telecom & lab application. Racks manufactured out of steel sheet punched, formed, welded and Powder coated with highest quality standard under stringent ISO 9001-2008 Manufacturing & Quality management system to ensure highest quality product. Standard for racks configuration will be welded frame with 4 no pillars of 7 folded profile welded to top and bottom ribbed/ reinforced frame additionally supported depth wise by welding 6 no depth rail 4 folded profile. Associated with vented top cover with fan mounting provision front glass or perforated metal door with lock & key and back vented / perforated metal door with lock & key and partially vented or Plain side panels 1200 deep rack will be configured with dual side panel. Free standing on floor with 4 No casters wheels with 2 No with brakes and 2 Nos. without brakes & with levelers or plinth. Available in 6RU~52RU Variants with 800,1000 & 1200 Depth configurations and 800 Width configurations.
