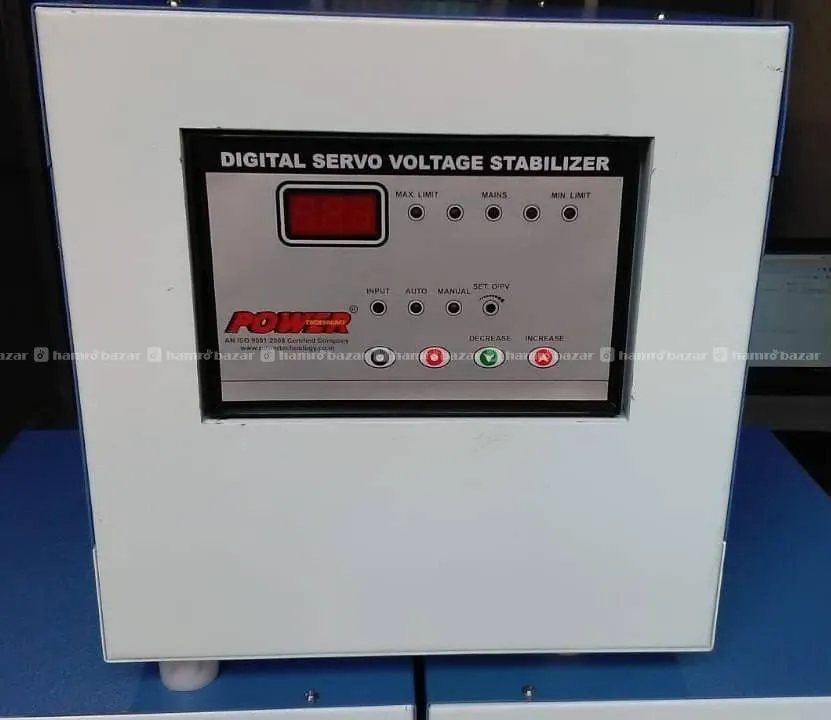

Servo Voltage Stabilizer 15 KVA 300-460V 3Phase

1,50,000

Input: 300-460V 3-Phase | Output: 380V/400V/415V (±1%) 15KVA Capacity | >95% Efficiency | 50/60Hz Servo-Motor Control | <50ms Response | Digital Display Protections: Overload, Short-Circuit, High/Low Voltage Cutoff Enclosure: IP42 Metal Cabinet | Class-F Insulation Noise: <60dB | Temp: -10°C to 50°C Applications: CNC, Medical, Industrial, Telecom Certified: IEC, CE, ISO, UL/ROHS

General

AD ID

HB-AB179F

Location

रिदम कला सप्लायर्स - Rhythm Kala Suppliers, Kathmandu-22, Kathmandu

Delivery

Available

Ads Posted

11 months ago

Ads Expiry

2048-12-31

Specifications

Used For

General Specifications Model: SV-15KVA Type: Servo-controlled Automatic Voltage Stabilizer Input Voltage Range: 300V – 460V (3-Phase) Output Voltage: 380V / 400V / 415V (±1% Accuracy) Capacity: 15 KVA Cooling Method: Forced Air Cooling (Fan) Efficiency: >95% Frequency: 50/60 Hz Technical Features Voltage Correction: Automatic servo-motor controlled regulation Response Time: <50ms (for voltage fluctuations) Display: Digital LED/LCD (shows input/output voltage, current, and load %) Protection: Overload, short-circuit, high/low voltage cut-off, thermal protection Bypass Option: Manual bypass for maintenance Insulation Class: Class-F Enclosure: Powder-coated metal cabinet (IP42 protection) Performance Parameters Load Capacity: 15 KVA (Suitable for industrial/commercial use) Waveform Distortion: <1% (No interference with sensitive equipment) Operating Temperature: -10°C to 50°C Humidity: Up to 95% (non-condensing) Noise Level: <60dB Mechanical Details Dimensions (LxWxH): Approx. 600 x 400 x 800 mm Weight: ~150 kg Mounting: Floor-standing with anti-vibration pads Applications CNC machines, medical equipment, industrial automation, elevators, telecom systems, and other high-precision machinery. Standards & Certifications Complies with IEC 61000, CE, ISO 9001 Safety standards: UL/ROHS certified

Warranty

1 Year

Delivery Area

Anywhere

Delivery Charge

100-3000
