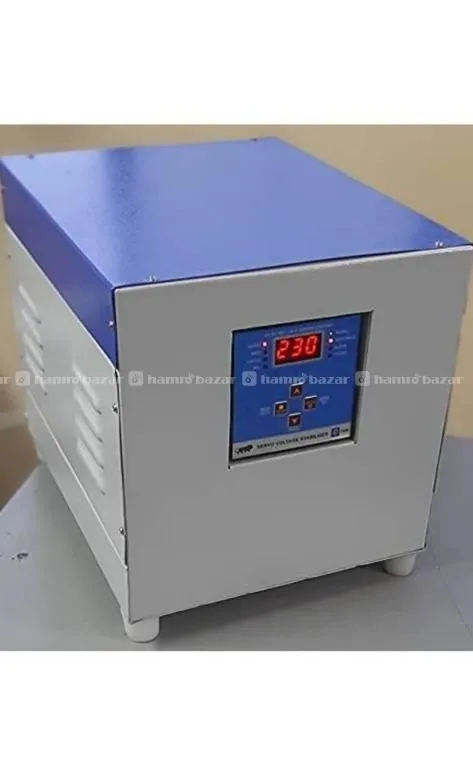

Learn moreServo Voltage Stabilizer 5 KVA (170-270 V)
38,000
Input: 170-270V | Output: 220V/230V (±1-3%)
Capacity: 5KVA | Efficiency: >95%
Correction Speed: 25-40V/sec | Response: <50ms
Protection: Overload/Short Circuit/High-Low Cutoff
Display: Digital (V/I/Load) | Cooling: Fan
Winding: Copper | Noise: <50dB
Size: ~350x250x400mm | Weight: 25-30kg
Certification: CE/ISO
General
AD ID
HB-C7BEAE
Location
रिदम कला सप्लायर्स - Rhythm Kala Suppliers, Kathmandu-22, Kathmandu
Delivery
Available
Ads Posted
11 months ago
Ads Expiry
2048-12-31
Specifications
Used For
General Specifications: Model: SVST-5KVA Type: Servo Motor Controlled Voltage Stabilizer Input Voltage Range: 170V – 270V (Single Phase) Output Voltage: 220V / 230V (±1% to ±3% Accuracy) Capacity: 5 KVA Frequency: 50Hz / 60Hz (Auto-Sensing) Cooling Method: Forced Air Cooling (Fan Assisted) Efficiency: >95% Display: Digital LED/LCD (Voltage In/Out, Current, Load %) Protection: Overload, Short Circuit, High/Low Voltage Cutoff Technical Features: Servo Motor Control: Auto-adjusts voltage via brushless motor for precise correction. Response Time: <50ms for voltage fluctuations. Voltage Correction Speed: 25-40V per second. Insulation Class: Class-B or Higher Winding Material: High-grade copper for minimal losses. Control Circuit: Microprocessor-based for smart regulation. Performance & Safety: Surge Protection: Built-in spike/surge suppression. Overload Capacity: 110% for 10 mins, 150% for 5 sec. Noise Level: <50dB Operating Temp: 0°C to 45°C Humidity Tolerance: Up to 95% (Non-condensing) Mechanical Details: Enclosure: Powder-coated metal cabinet (IP42 rated). Mounting: Floor-standing / Wall-mounted (bracket optional). Weight: ~25-30 kg Dimensions (LxWxH): Approx. 350 x 250 x 400 mm Applications: Home appliances (ACs, Refrigerators, TVs). Medical equipment (Limited load). Office devices (Servers, Printers). Industrial machines (CNC, Pumps within 5KVA). Standards & Compliance: Certification: CE / ISO 9001 / IEC 61000 (EMC). Warranty: 3-5 years (conditional). Accessories: User manual, Power cord, MCB/Fuse. Optional: RS485 communication, HT/LT alarm.
Warranty
1 year
Delivery Area
Anywhere
Delivery Charge
100-1500
