Used For

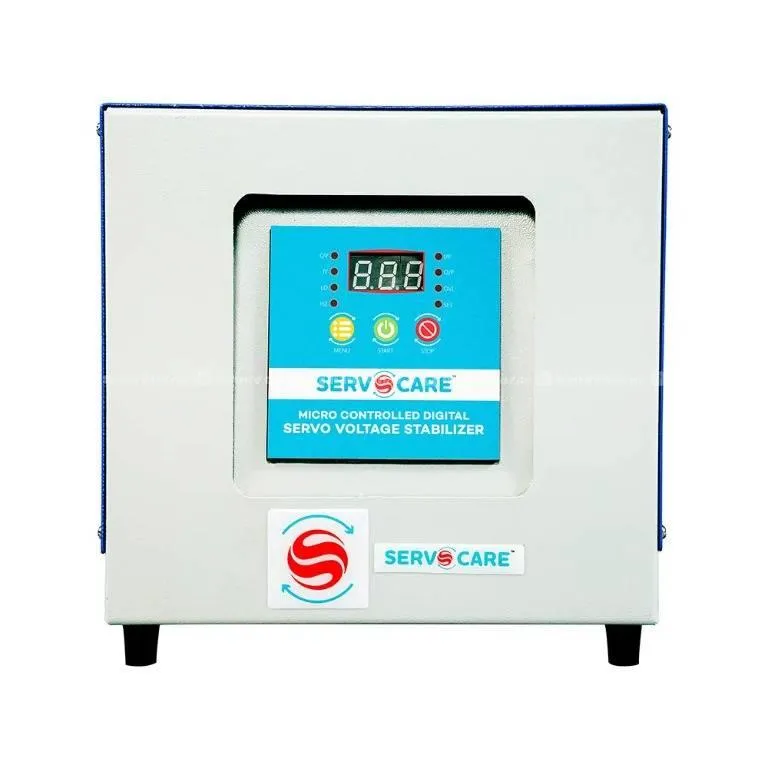

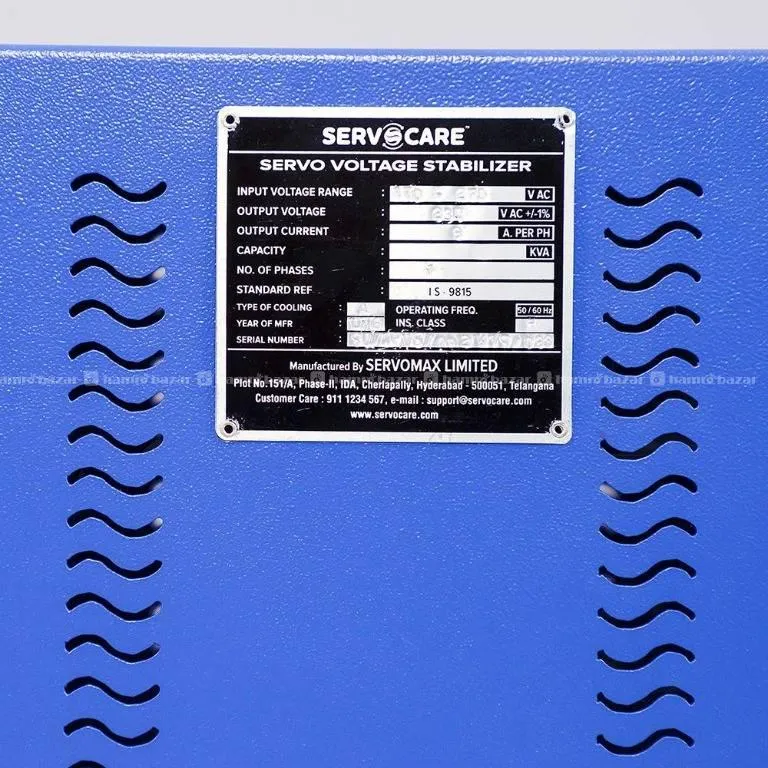

General Specifications: Model No: SVST-7.5KVA Capacity: 7.5 KVA (Single Phase) Input Voltage Range: 170V - 270V AC Output Voltage: 230V AC (±1% regulation) Frequency: 50Hz (47-53Hz operating range) Type: Servo Motor Controlled Standard Compliance: IS:9815 Cooling Method: Natural Air-cooled Efficiency: 98.5% (typical) Performance Characteristics: Voltage Correction Speed: 35V per second Response Time: <10 milliseconds Waveform Distortion: Negligible (<1%) Load Power Factor: 0.8 lagging to unity Overload Capacity: 110% continuous, 150% for 5 seconds Protection Features: Electromagnetic Contactor Based: High voltage cut-off Low voltage cut-off MCB Protection: Overload protection Short circuit protection Additional Safeguards: Thermal overload protection Time delay for power recovery Technical Construction: Control System: Microprocessor based with servo motor control Voltage Adjustment: Brushless servo motor with auto-transformer Winding Material: High-grade copper windings Insulation Class: Class F (155°C) Display: Digital LED showing input/output voltage, load percentage Environmental Specifications: Operating Temperature: 0°C to 45°C Relative Humidity: Up to 95% non-condensing Altitude: Up to 1000m above MSL Noise Level: <45dB Physical Specifications: Enclosure: Powder coated MS cabinet (IP42 rated) Dimensions (W×D×H): 400×350×500 mm Weight: Approx. 38 kg Mounting: Floor standing type Applications: Medical equipment (X-ray machines, CT scanners) Laboratory instruments CNC machines Telecom equipment Commercial establishments High-end residential applications Standards & Certifications: Complies with IS:9815 standards CE marked RoHS compliant 3 years comprehensive warranty Accessories Included: Installation manual Test certificate Power cord Mounting accessories Note: Specifications may vary slightly based on design improvements. For precise requirements, please consult factory data.
